Firstly, we need to know what an automatic tool setter is?

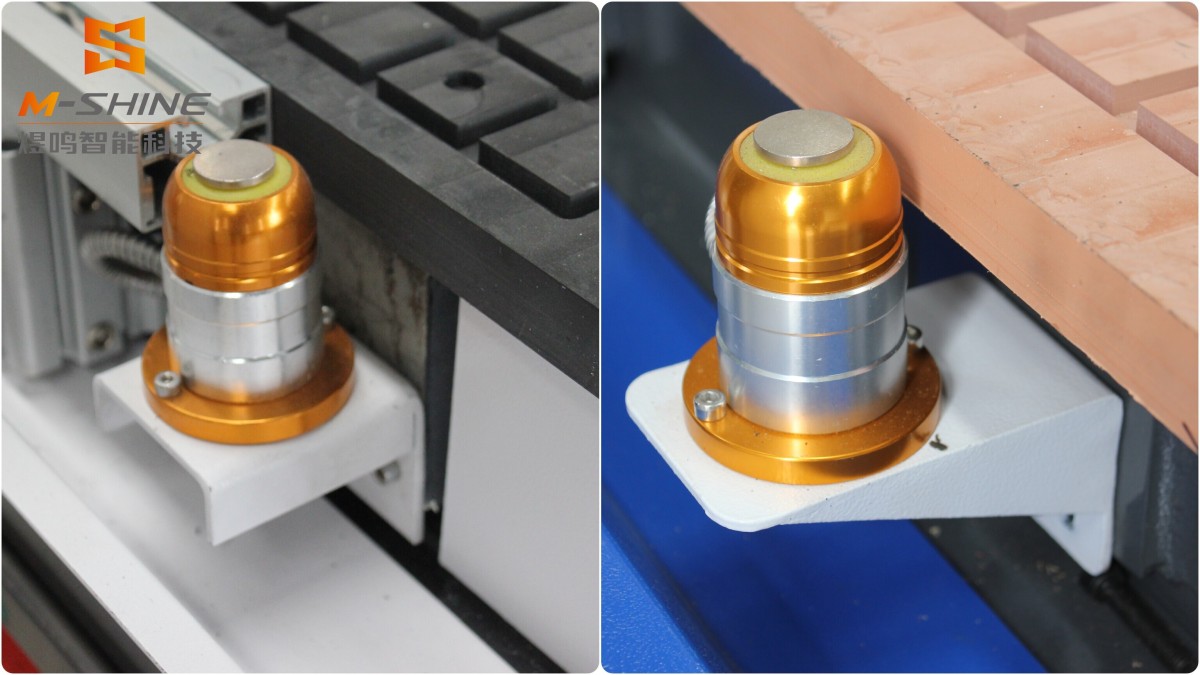

Automatic tool setter, as the name suggests, is a device installed on the ATC nesting CNC router for automatically and accurately measuring the length and diameter of cutting tools (mainly milling cutters and drill bits). You can imagine it as the "eyes" and "ruler" of a cutting machine, replacing the traditional step in which operators need to manually measure with a ruler or tool block during processing.

The working principle of the tool alignment device of the ATC nesting CNC router also has rules to follow:

1. Trigger: The machine tool spindle carries the tool and moves towards the tool setting block on the tool setting device at a certain speed.

2. Contact: When the tool tip just touches the tool block, a high-precision micro switch or electronic signal will be triggered.

3. Signal transmission: The tool setter immediately sends a "trigger signal" to the CNC system of the machine tool.

4. Recording and Calculation: The CNC system records the Z-axis (or X/Y axis) coordinate values of the current spindle. The system automatically calculates the precise length of the tool by comparing this coordinate value with the preset height value of the tool setter itself. By measuring the side edge of the tool, the diameter of the tool can also be calculated.

5. Data writing: The calculated tool length compensation H and diameter compensation D are automatically input into the tool compensation table of the machine tool.

Why is it so important? What is the necessity of an automatic tool setter for ATC nesting CNC routers?

In the era without automatic tool alignment devices, operators needed to manually align tools, which was not only inefficient but also prone to errors. The necessity of automatic tool alignment is reflected in the following core aspects:

1. Ensure machining accuracy and consistency

Eliminating human error: Manual tool alignment relies on the operator's experience and sensation, resulting in visual and tactile errors. The automatic tool setter adopts a unified electronic signal trigger, with extremely high repeatability accuracy (usually up to ± 0.001mm to ± 0.005mm), ensuring absolute accuracy of the length and diameter data of each knife.

Ensure processing depth: In the cutting of panel furniture, it is often necessary to carve, slot or cut through the board. If the length measurement of the cutting tool is inaccurate, it will result in inconsistent groove depth, engraving too deep or too shallow, and even inability to cut through the board, causing the entire board to be scrapped.

Ensure contour accuracy: Accurate tool diameter compensation can ensure precise dimensions of the machined parts, avoiding dimensional deviations caused by tool wear.

2. Significantly improve production efficiency

Rapid tool alignment: The automatic tool alignment process is usually completed within a few seconds to a dozen seconds, which is tens of times more efficient than manual tool alignment that takes only a few minutes.

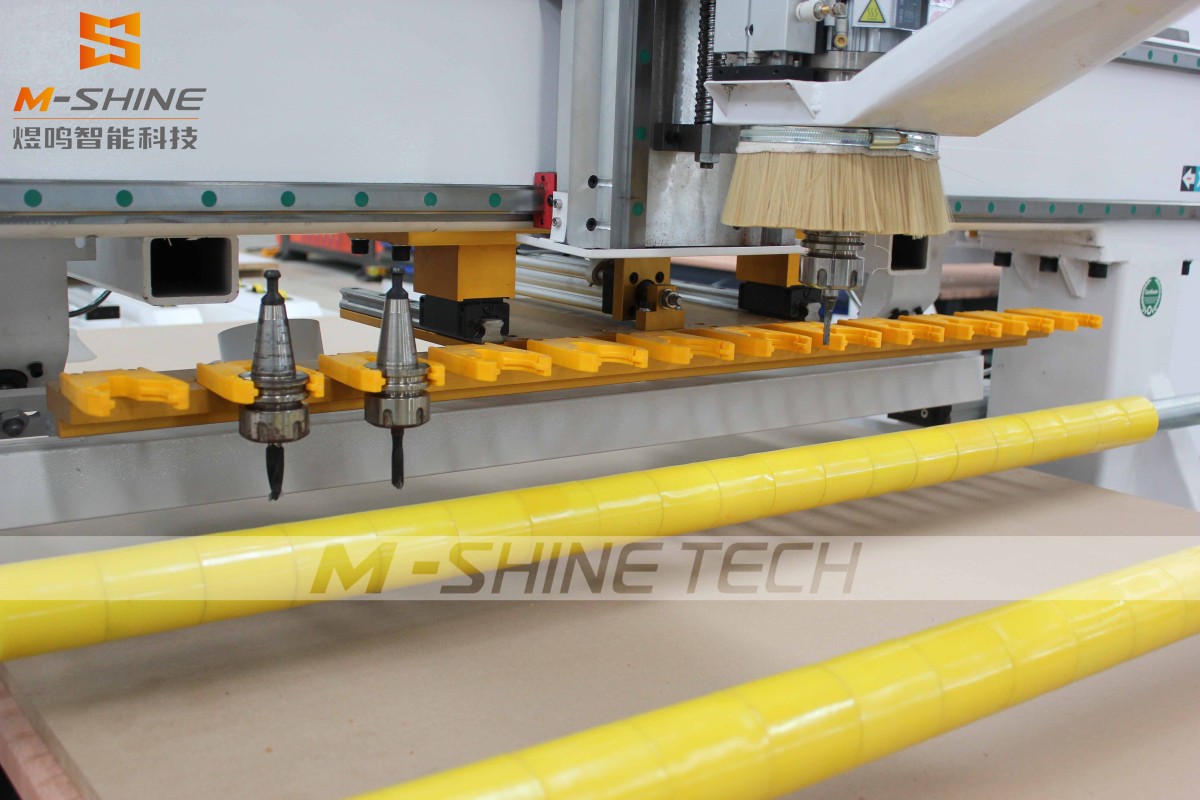

Adapting to automated production: Multiple cutting tools (such as cutting knives, drilling knives, grooving knives, etc.) can be loaded at once in the cutting center equipped with an automatic tool changing magazine. At the beginning of processing, the system can automatically and sequentially measure all cutting tools without any manual intervention, truly achieving fully automated processing with "one click start". This cannot be achieved by manual tool alignment.

3. Implement automatic compensation for tool wear

The tool will wear out after long-term processing, resulting in slight changes in length and diameter, which will affect the machining quality.

By calling the automatic tool setting program during the processing, the system can detect the tool wear and automatically add the wear value to the tool compensation, so that the size of the processed parts is always consistent, greatly extending the effective service life of the tool, and ensuring the stability of the quality of batch production products.

4. Improve equipment safety and reliability

Anti collision knife protection: Automatic tool alignment before processing can effectively avoid "tool collision" accidents caused by manual tool alignment errors or input data errors (such as deep penetration under the Z-axis). The system accurately knows the position of the blade tip, thereby safely controlling the movement trajectory.

Tool breakage detection: If the system detects an abnormal length of a certain tool during tool alignment before processing, it can immediately determine that the tool may have broken, pause processing, and issue an alarm. This prevents ineffective processing with broken knives, avoiding material and time waste.

5. Reduce the skill requirements and labor intensity for operators

Automatic tool alignment simplifies the operation process, and ordinary operators can easily manage complex multi tool machining tasks through simple training, reducing reliance on advanced technicians. At the same time, it also liberates operators from repetitive and tedious manual tool setting work.

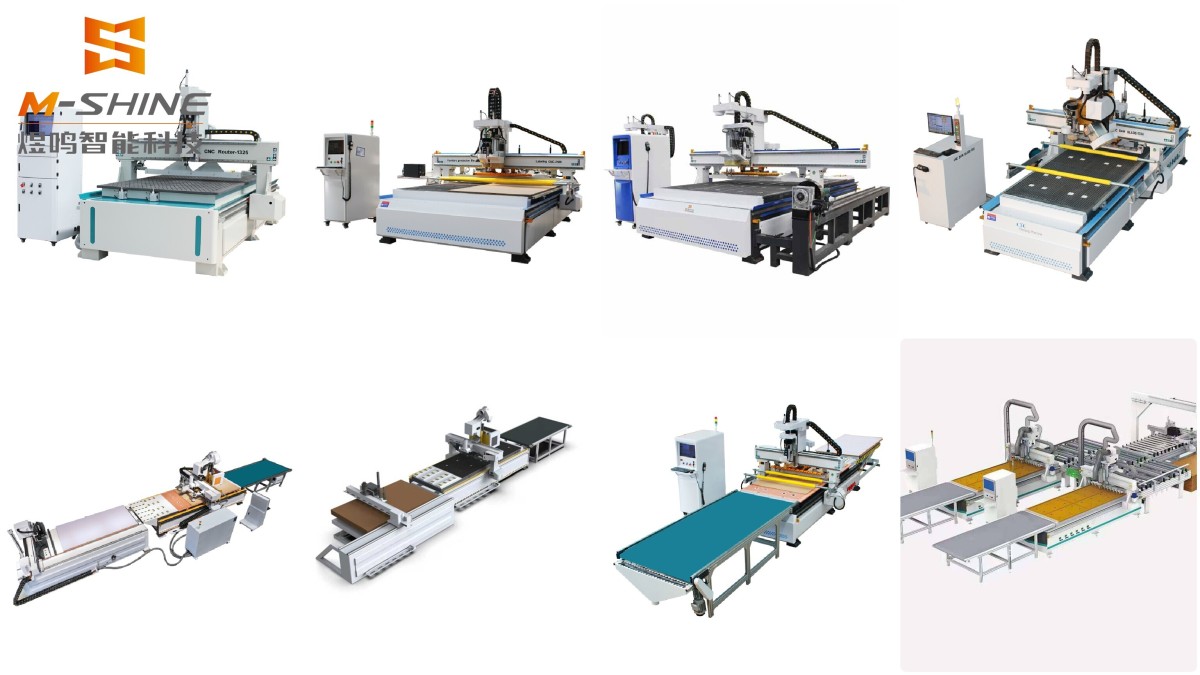

In modern ATC nesting CNC routers, especially in the fields of panel furniture production lines, cabinet door panel processing, etc., automatic tool alignment has evolved from an "optional accessory" to a "core standard".

It is not only a tool for "tool alignment", but also the cornerstone for achieving high precision, high efficiency, high automation, and intelligent production. It forms a closed-loop control system through precise measurement and data feedback, ensuring the controllability and reliability of the entire machining process of the ATC nesting CNC router. The value of choosing an ATC nesting CNC router with an automatic tool alignment device in terms of quality improvement, efficiency gain, and material savings far exceeds the cost of the equipment itself，Follow JINAN M-SHINE to stay up-to-date on CNC knowledge.
